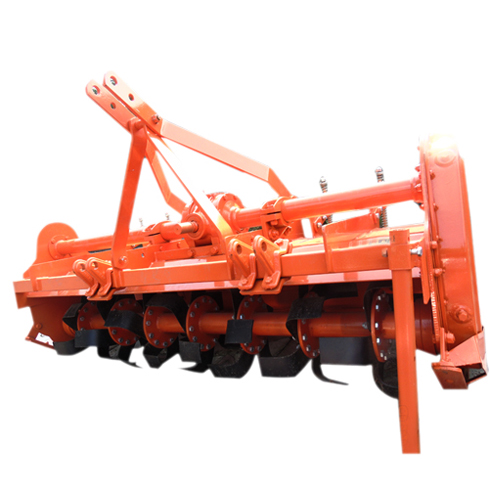

Rotary Tiller Single Speed

Features:

  • Rotary tiller can be operated in wet & dry land condition.
  • Time and fuel saving.
  • It is very efficient and economical.
  • Side Gear drive.
  • PTO Speed (RPM) 540 and 1000.



SPECIFICATION SMR-4 SMR-5 SMR-6 SMR-7
Working width (mm) 1250 1500 1760 2050
Overall Height (mm) 1080
Gearbox Single Speed
No. of Flanges 5 6 7 8
No. of Blades 30 36 42 48
Type of Blade L
Side Transmission Gear Drive
Required Hp 30-40 40-45 45-55 55-65
Weight (Kg) 350 400 450 500

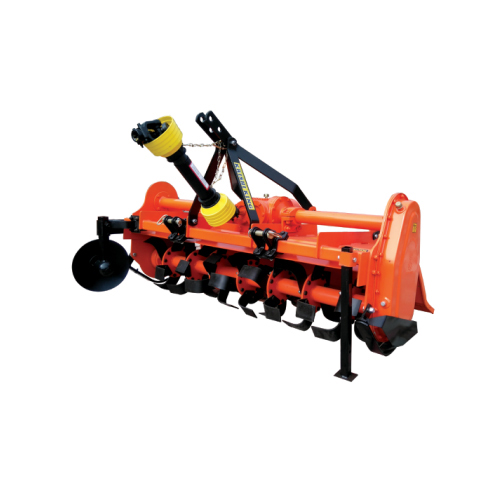

Rotary Tiller Multi Speed (Regular Series)

Features:

  • Rotary tiller can be operated in wet & dry land condition.
  • Time and fuel saving.
  • It is very efficient and economical.
  • Side Gear drive.
  • PTO Speed (RPM) 540 and 1000.



SPECIFICATION SMR-4 SMR-5 SMR-6 SMR-7 SMR-8
Working width (mm) 1250 1500 1760 2050 2340
Overall Height (mm) 1080
Gearbox Multispeed
No. of Flanges 5 6 7 8 10
No. of Blades 30 36 42 48 60
Type of Blade L
Side Transmission Gear Drive
Required Hp 30-40 40-45 45-55 55-65 65-75
Weight (Kg) 365 415 465 515 575

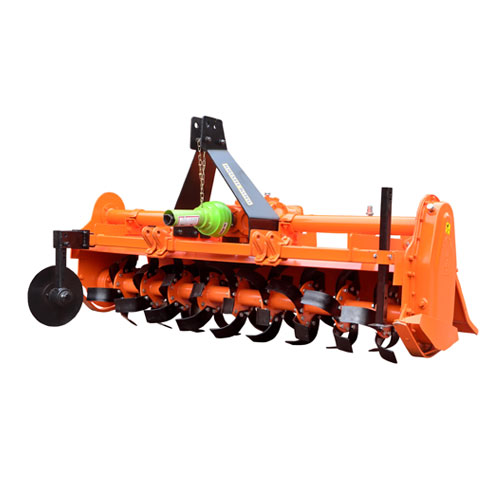

Rotary Tiller Multi Speed (Baahubali Series)

Features:

  • Rotary tiller Baahubali Series can be operated in Hard & in Toughest land.
  • Gear Box – 7 ltrs Gear Oil Capacity
  • Gear Box both side Tubes 3”
  • Suitable for all types of Soils.
  • Suitable for deep tillage especially for Sugarcane & banana fields
  • Time and fuel saving.
  • It is very efficient and economical.
  • Side Gear drive.
  • PTO Speed (RPM) 540 and 1000.
  • Heavy duty Three Point Linkage – 8 mm Plate



SPECIFICATION SMR-4 SMR-5 SMR-6 SMR-7 SMR-8
Working width (mm) 1250 1500 1760 2050 2340
Overall Height (mm) 1080
Gearbox Multispeed
No. of Flanges 5 6 7 8 10
No. of Blades 30 36 42 48 60
Type of Blade (80×7 mm) L
Side Transmission Gear Drive
Required Hp 30-40 40-45 45-55 55-65 65-75
Weight (Kg) 395 445 495 545 605

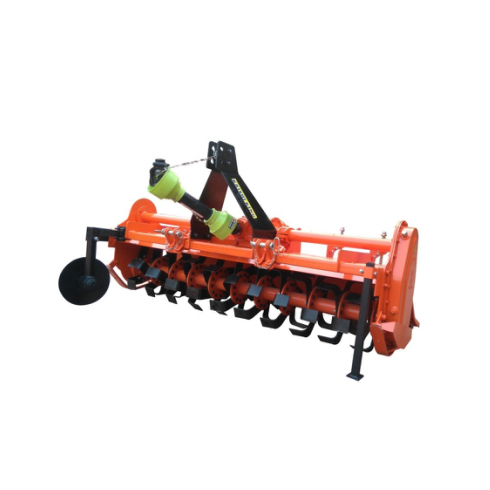

Gyrovator

Features:

  • New blade bending which gives more depth while working in the field.
  • It has extra blades which helps in making perfect soil conditions for sowing.
  • All parts are developed & manufactured with high-tech precision machines which increase the durability of the machine.
  • Side Gear drive.
  • PTO Speed (RPM) 540 and 1000.
SPECIFICATION SMR-4 SMR-5
Working width (mm) 1250 1500 1760 2050 2340
Overall Height (mm) 1080
Gearbox Multispeed
No. of Flanges 8 9 10 11 12
No. of Blades 42 48 54 60 66
Type of Blade L
Side Transmission Gear Drive
Required Hp 30-40 40-45 45-55 55-65 65-75
Weight (Kg) 385 435 485 535 590
